| 원래 장소: | 중국 |
| 브랜드 이름: | HOWO ORICA |
| 인증: | CE/GCC/GOST/CCC/ISO/ |
| 모델 번호: | 글로벌 BCRH-15 |
| 최소 주문 수량: | 1개 |
|---|---|
| 가격: | $50000-150000 |
| 포장 세부 사항: | 누드로 패키지 |
| 배달 시간: | 15-30 근무일 |
| 지불 조건: | L/C, T/T, D/P, D/A, 웨스턴 유니온 |
| 공급 능력: | 10000 단위/년 |
| 포러스 암모늄 나트라트 상자 m3: | 20 | 재료: | 스테인레스 스틸 |
|---|---|---|---|
| 색상: | 하얀색 | 라텍스베이스 매트릭스 상자의 효과적인 볼륨 :: | 16.5m3 |
| 충전 효율 :: | 200-280kg/min2 "파이프 운송/길이 30m) | 효과적인 트레이스 요소 상자 A :: | 0.12m3 |
| 효과적인 트레이스 요소 박스 B :: | 0.12m3 | 계량 오류 :: | ≤±2% |
| 강조하다: | 15-ton emulsion loading truck,mining explosive charging vehicle,bulk explosive mixing truck |
||

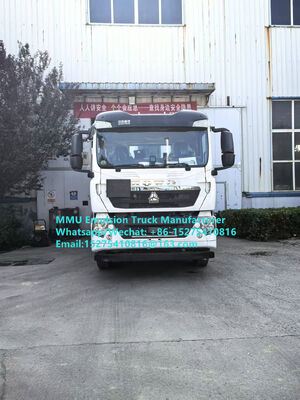

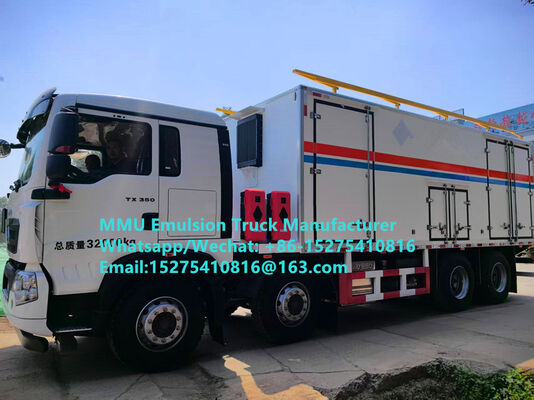

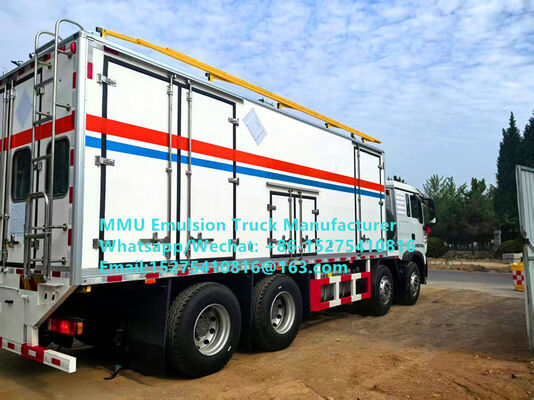

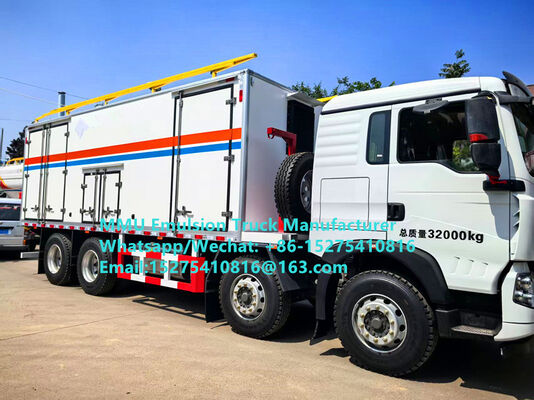

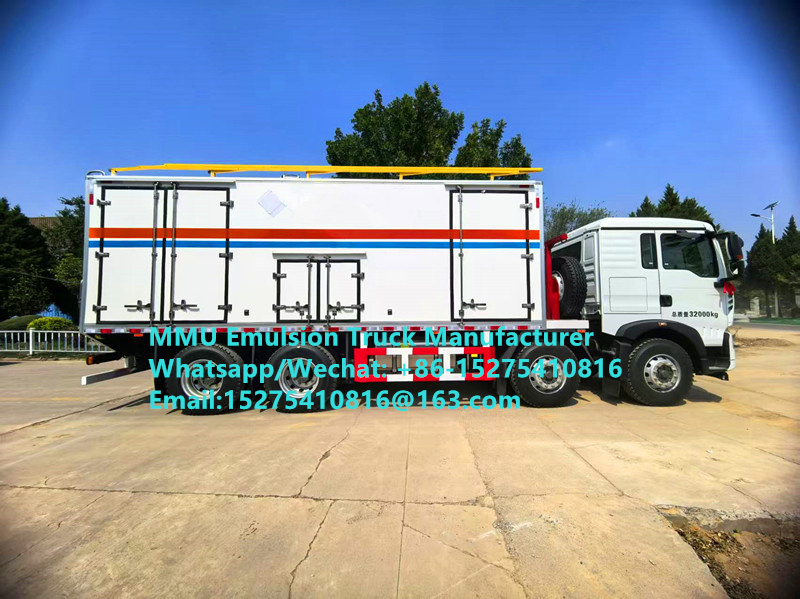

Good quality smart ORICA 15/20/25Ton on-site mixing and charging emulsion truck bulk explosive loading truck Mongolia Mining Blast service Kazakhstan Uzbekistan Indonesia Congo DRC GUINEE Tanzania MMU
Function:
BCRH-15 on-site mixed emulsion explosive vehicle is contained in each bin: water phase, oil phase, sensitizer and latex matrix in the car, that is, emulsification, sensitization and filling are carried out on the vehicle. It is a combination of transportation, mixing and filling, and is suitable for the operation of water-containing blastholes in open pit mines. The advanced computer operating system, the flow of the aqueous phase and the speed of the emulsifier adopt automatic tracking and closed-loop control, stable performance, accurate ratio, safe and reliable. It has a safety guarantee system for over-temperature, over-pressure, and material-break alarm shutdown.
Description:
• Before charging, at ground station, relevant materials should be added into corresponding container in the truck.
• When loading truck comes to job site, start PTO, stretch charging tube into bottom of the hole, input explosive load on counter and press start button. Then, each preparation and mixing unit begins to work. Slowly raise charging tube. Explosive is charged below water, and water is discharged from hole. After charging, move to the next hole, repeat the above procedure, and charge the next hole.
• Charging effectiveness 200-280kg/min.
• Currently, there are 5 specifications, 8T, 12T, 15T, 20T, 25T.
• Measurement error ≤ ± 2%
Emulsified explosive truck with on-site mixing loading of NCHR line can mix pure emulsion explosives and series emulsion explosive with 30% of dry mix at most on-site. The preparation of aqueous phase, oil phase and sensitizer is operated on ground station, while latex matrix emulsion can be completed on the ground, or in truck. Dry material mixture and sensitization is conducted in truck.
ANFO mixing loading truck list of main equipment
| Item | Name | QT. | Remarks |
| 1 | Vehicle chassis | 1 | HOWO truck chassis |
| 2 | Material storage tank,Ammonium nitrate box:12m3, Fuel tank:1 m3 | The volume size can be designed according to user requirements 304 stainless steel | |
| 3 | Screw conveyor | 3 bar | 304 stainless steel |
| 4 | Hydraulic pressure system | 1 set | Engine power,hydraulic oil pump,hydraulic oil container,radiator,hydraulic motor,solenoid valve group and so on |
| 5 | Automatic control system | 1 set | sensor,computer,control software,safety interlock system and so on |
Main technical parameters of ANFO Truck
| Chassis model | HOWO 8x4 truck chassis |
| Probable outline dimension (mm) | 11000x2500x3400 |
| Chassis Number | ZZ1317N4667W |
| Max.speed(km/h) | 80 |
| Power Source | Automobile engine |
| Porous ammonium nitrate box m3 | 20 |
| Diesel feed box m3 | 1 |
| Hydraulic oil tank m3 | 0.5 |
| Charge rate kg/min | ≥200 |
| measurement error | ±2% |
| Filled aperture mm | ≥Φ90 |
| Safety precautions | Over temperature protection, disconnection, chain startup and stop |
HOWO 8x4 truck chassis information
| General information | |
| Driving Type | 8X4 |
| Wheelbase | 4600mm |
| Overall length | 11.00m |
| Overall width | 2.496m |
| Overall height | 3.50m |
| Front/ rear tread | 2020/1830mm |
| Curb weight | 14.00T |
| Total mass | 31.00T |
| Approach angle/ Departure angle | 15/25 |
| Suspension form | 10/9+6 |
| Engine information | |
| Engine model | WD615.47 |
| No. of cylinders | 6 |
| Fuel type | Diesel |
| Cylinder arrangement | In-line |
| Displacement | 9.726L |
| Emission standard | Euro III |
| Max. torque speed | 1200~1500RPM |
| Rated revolution | 1900RPM |
| Cabin information | |
| Person | 2 |
| Rows of seats | 1 |
| Gearbox information | |
| Gearbox type | HOWO gearbox |
| Shift mode | Manual |
| Forward gear | 10 |
| Reverse gear number | 2 |
| Tyre | |
| No.of tyre | 12+1 |
| Tyre model | 12.00-20 |
Competitive Advantage
1. Professional Sales Team of trucks. Our target is not selling trucks, we help customers choose the best suitable trucks.
2. Fast production period, and quick arrangement of delivery.
3. Professional team for spare parts and aftersale services.
Packaging & Shipping
RO-RO ship
Our Services
We supply technical service and tools.
Tag:BLAST/Explosive/ANFO/On-site mixed granular ammonium oil explosive truck/ TRUCK/ on-site mixed emulsion explosive/MEMU/MMU/Mobile Explosive Manufacturing Unit/BCLH/BCZH/BCRH/ TREAD BULK TRUCKS/BULK EXPLOSIVES/Russia, Kazakhstan, Uzbekistan, Indonesia, Democratic Republic of Congo, Zambia, Zimbabwe, Tanzania, Ghana, Guinea, Namibia, Guyana, Mexico, Peru, etc.
