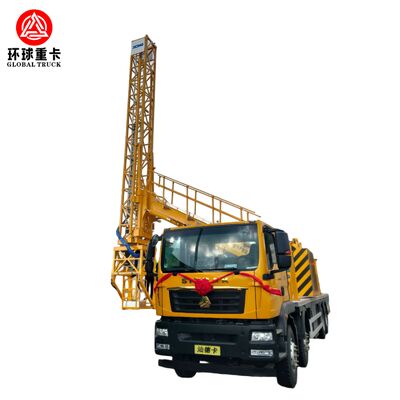

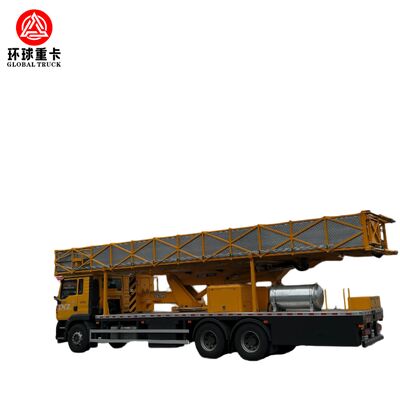

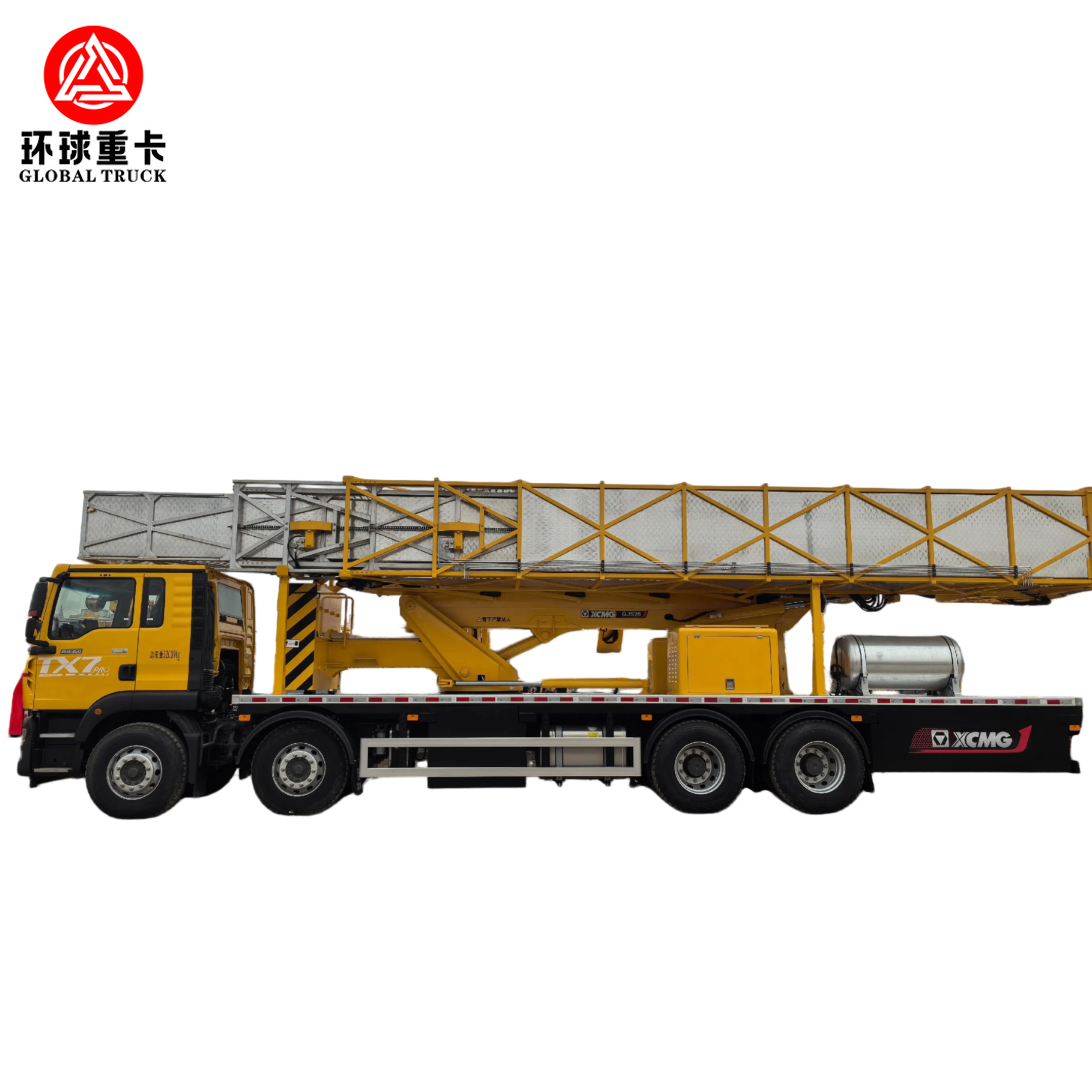

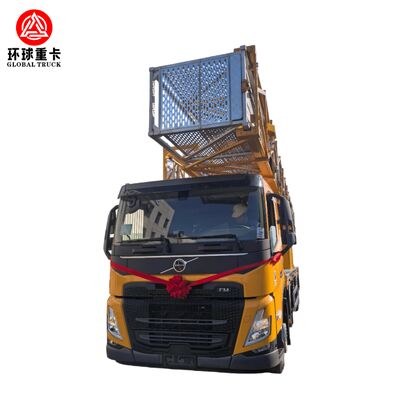

Bridge Inspection Truck (XCMG Upper + SINOTRUK HOWO Chassis)
This bridge inspection truck is engineered for safe and efficient inspection, maintenance, and repair of bridges and elevated structures. It combines a SINOTRUK HOWO heavy-duty chassis with an XCMG aerial working system, delivering stable performance, strong lifting capability, and reliable operation across diverse working environments.
Structural Configuration
Chassis System
- Manufacturer: SINOTRUK
- Model: HOWO series
- Drive Type: 4x2 / 6x4
- Engine: Weichai or SINOTRUK diesel engine
- Power Range: 266-420 HP
- Transmission: Manual gearbox (10F / 12F)
- Emission Standard: Euro II / III / IV / V available
- Steering: Left-hand drive / Right-hand drive
- Frame: Reinforced heavy-duty chassis suitable for upper structure load
Working Platform System (XCMG)
- Brand: XCMG
- Structure Type: Telescopic or folding boom system
- Maximum Working Height: 12m - 20m (optional customization)
- Maximum Working Reach: up to 12m
- Platform Load Capacity: 200-400 kg
- Platform Size: 1200-1500 mm (approx.)
- Rotation: Optional 360° continuous rotation
- Control Mode: Electro-hydraulic control system
Hydraulic System
The vehicle utilizes a high-pressure hydraulic system with stable and precise performance characteristics.
- Hydraulic pump: High efficiency design
- Working pressure: 16-20 MPa
- Hydraulic oil tank: Equipped with cooling system
- Components: High-quality hydraulic valves and cylinders
- Safety system: Pressure relief and overload protection
Safety System
- Automatic hydraulic leveling outriggers
- Anti-overturning protection system
- Dual emergency stop system (platform and ground)
- Hydraulic locking device
- Height and rotation limit protection
- Non-slip working platform with guardrails
- Emergency lowering system
Electrical System
- 24V DC electrical system
- Waterproof and dustproof wiring
- Central control panel
- LED working lights
- Optional wireless remote control
- Emergency backup power
Performance Features
- Stable operation even at full extension
- Precise control of boom movement
- Fast deployment and recovery
- Suitable for complex bridge structures
- Strong adaptability to different road conditions
Application Scope
- Bridge inspection and structural assessment
- Highway and expressway maintenance
- Overpass and viaduct maintenance
- Railway bridge inspection
- Municipal infrastructure repair
- Emergency rescue and maintenance operations
Quality Control
- Strict factory testing before delivery
- Load testing of working platform
- Hydraulic system pressure testing
- Stability and safety system inspection
- Inspection report available upon request
Delivery and Packaging
- Delivery Time: 30-45 days after order confirmation
- Packaging: Waxed and rust-protected, shipped as complete unit
- Shipping Options: RO-RO, bulk vessel, or container (depending on size)
- Port: Qingdao / Shanghai / Tianjin
After-Sales Service
- Warranty period: 12 months
- Technical support: Remote guidance and troubleshooting
- Spare parts: Long-term supply available
- Optional: On-site commissioning and training
Customer Feedback
Client from Kenya: "The truck is reliable for our bridge inspection work. The boom operation is smooth and the chassis handles rough roads well."
Client from Tanzania: "The equipment is stable and meets our project requirements. The hydraulic system works efficiently and safely."
Client from Nigeria: "The quality is good and the machine is easy to maintain. It helps us improve our daily inspection efficiency."
Client from Philippines: "The system is user-friendly and the training was easy. The platform is very stable during operation."
Frequently Asked Questions
Can the working height be customized?
Yes. We can design working heights from 12m to 20m according to your requirements.
Is this vehicle suitable for African road conditions?
Yes. The SINOTRUK chassis is widely used in Africa and is suitable for rough road conditions.
Can you provide right-hand drive versions?
Yes. Both left-hand drive and right-hand drive are available.
What safety systems are included?
Anti-overturning, emergency stop, automatic leveling, and overload protection are standard.
Do you support customization?
Yes. We can customize specifications based on your working requirements and local regulations.
What is the main advantage of this model?
It combines a reliable chassis with a professional aerial working system, offering stability, safety, and cost efficiency.
