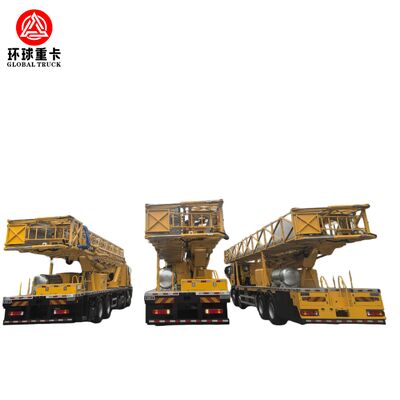

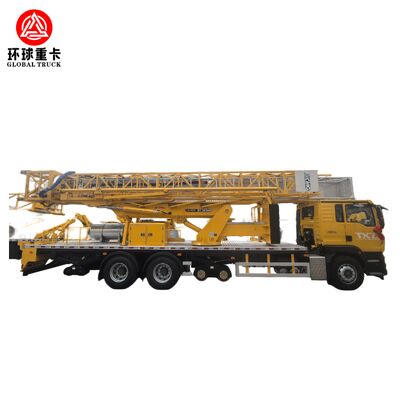

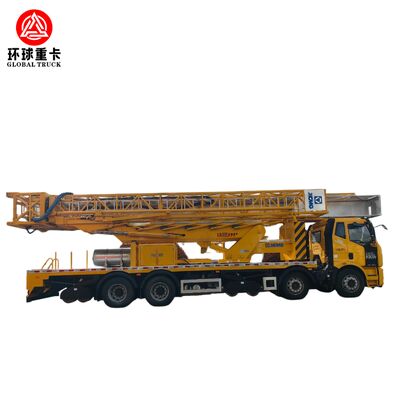

HOWO Diesel Powered Bridge Inspection Vehicle with Folding Boom Lift and Euro 5/6 Engine
Bridge Inspection Truck / Bridge Inspection Platform Vehicle
Safe, Efficient, and Precise Solution for Bridge Maintenance and Inspection
Product Overview
The Bridge Inspection Truck is a specialized vehicle designed for inspection, maintenance, and repair of bridges, viaducts, and elevated structures. Equipped with a multi-section telescopic boom and hydraulic platform, it allows operators to safely access the underside and sides of bridges without interrupting traffic flow.
This vehicle is widely used by government agencies, engineering companies, and infrastructure maintenance teams, offering a reliable solution for modern bridge inspection needs.
Technical Specifications
- Chassis Brand: HOWO / Shacman / Dongfeng optional
- Drive Type: 4×2 / 6×4 / 8×4
- Working Platform Load: 200-600 kg
- Max Horizontal Reach: 14-22 meters (customizable)
- Max Vertical Depth: 5-8 meters below bridge deck
- Boom Type: Multi-section folding telescopic arm
- Rotation Angle: 180°-360° continuous rotation
- Hydraulic System: Electro-hydraulic proportional control
- Control Mode: Both platform and ground control
- Stabilizers: Hydraulic outriggers with safety interlock
- Safety System: Emergency stop, overload protection, anti-tilt system
- Power Source: PTO-driven hydraulic system
- Operation Temperature: -20°C to +45°C
Main Features & Advantages
- Wide Working Range: Multi-angle boom design allows access to hard-to-reach areas under bridges
- High Safety Standards: Equipped with multiple safety protections including emergency stop and overload alarm
- Stable Operation: Hydraulic outriggers ensure balance during operation
- Flexible Control: Dual control system improves efficiency and safety
- No Traffic Disruption: Inspection can be performed without closing the bridge
- Customizable Configuration: Platform size, working height, and chassis can be tailored
Applications
- Bridge inspection and maintenance
- Highway and railway overpass inspection
- Municipal infrastructure maintenance
- Tunnel and elevated structure inspection
Customer Feedback
"We use this bridge inspection truck for highway bridge maintenance. It is very stable and easy to operate. The reach and flexibility are excellent."
— Engineering Department, Nigeria
"Compared with traditional methods, this vehicle saves us a lot of time and improves safety significantly."
— Municipal Project Contractor, Kenya
Frequently Asked Questions
Q1: What is the maximum working height and reach?
A: The horizontal reach is 14-22 meters, and vertical depth can reach 5-8 meters below the bridge deck.
Q2: Is the vehicle safe for operation at height?
A: Yes, it is equipped with anti-tilt protection, overload alarms, emergency stop system, and hydraulic stabilizers.
Q3: Can the truck be customized for different bridge types?
A: Yes, we can customize boom length, platform size, and chassis type according to your project requirements.
Q4: What chassis brands are available?
A: HOWO, Shacman, Dongfeng, and other brands are available based on your preference.
Q5: How long is the production time?
A: Usually 30-45 working days depending on configuration.
Q6: Do you provide technical support and training?
A: Yes, we provide operation manuals, video guidance, and remote technical support.
