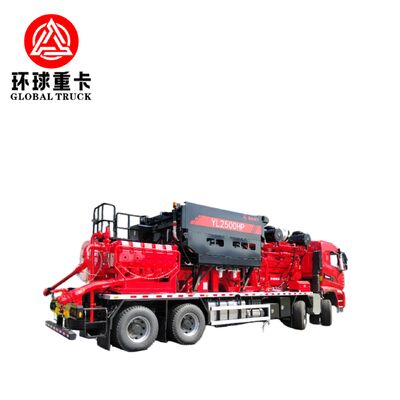

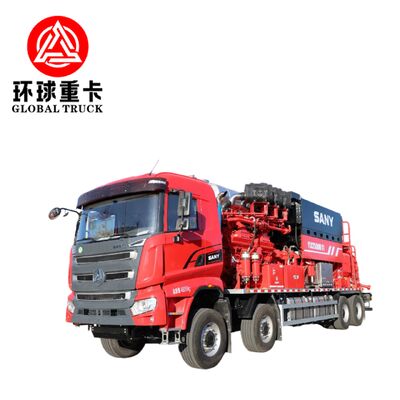

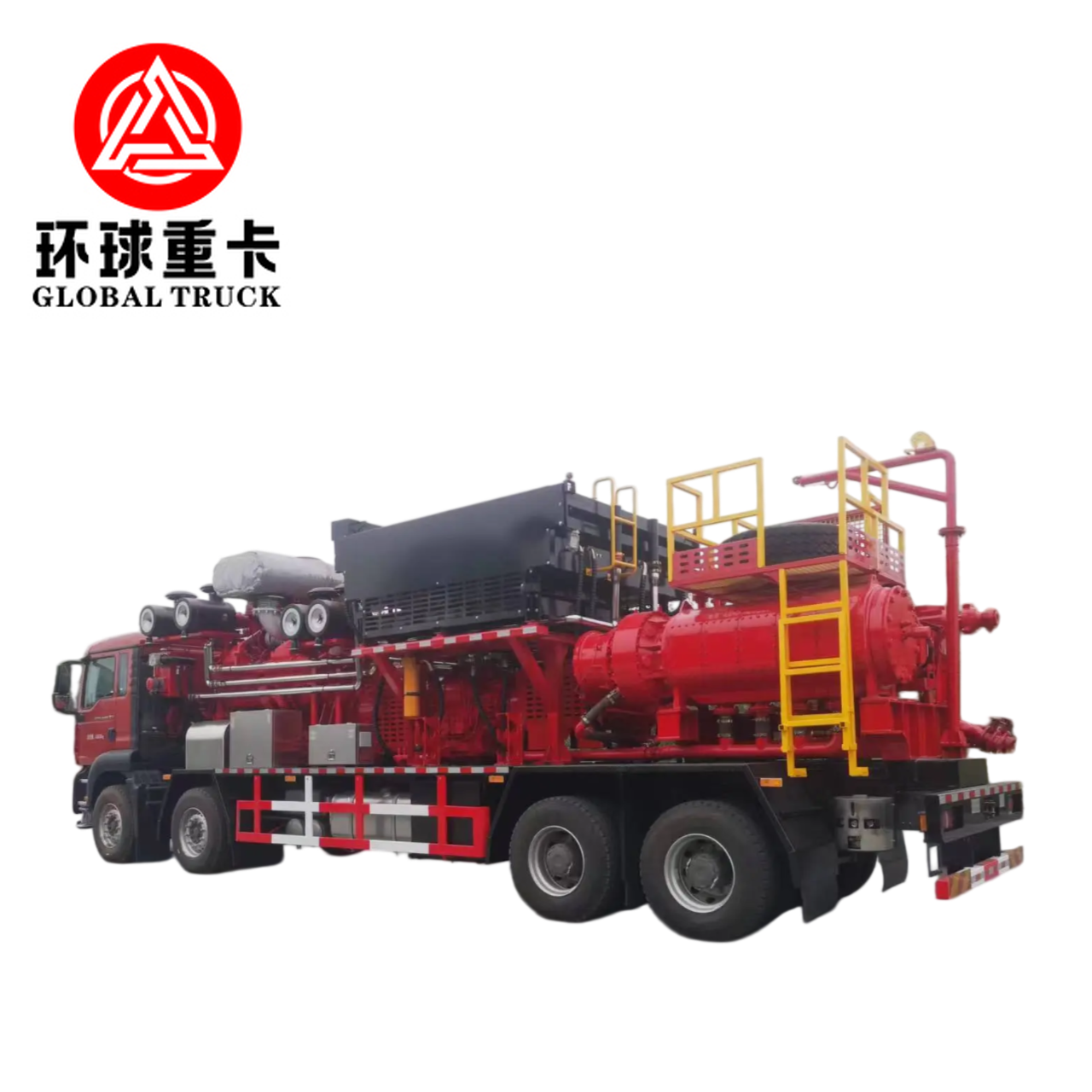

XYLC2500 8×6 Heavy-Duty Hydraulic Fracturing Truck
Unconventional Oil & Gas Stimulation Equipment
Equipment Overview
The XYLC2500 8×6 Hydraulic Fracturing Truck is a high-horsepower, mobile well stimulation unit developed for unconventional hydrocarbon extraction, including shale gas, tight sandstone reservoirs, and deep horizontal wells. This system integrates a 2,500 HP power module, high-pressure triplex plunger pump, reinforced transmission system, and centralized control cabin into a single heavy-duty 8×6 chassis platform.
Engineered for reliability, pressure stability, and long-duration pumping performance in large-scale fracturing spreads under complex field conditions.
Vehicle & Structural Platform
- Drive Configuration: 8×6 oilfield chassis
- Chassis Engine Power: 430-500 HP
- Transmission: Heavy-duty multi-speed gearbox
- Axle System: Reinforced oilfield axles
- Suspension: Strengthened leaf spring system
- Frame: High-tensile structural steel
- Maximum Road Speed: 70-80 km/h
- Off-Road Capability: Suitable for desert, plateau, and rugged terrain
The 8×6 configuration enhances load-bearing performance and operational stability when transporting high-weight fracturing equipment.
Power Module System
Main Deck Engine:
- Rated Power: 2,500 HP
- Fuel Type: Industrial diesel
- Cooling Method: Closed-loop water cooling
- Air Intake: Multi-stage filtration for dusty environments
- Continuous Operation Design: Suitable for extended pumping cycles
Power Transmission:
- High-torque industrial transmission
- PTO drive system
- Flexible coupling structure
- Shock-absorbing mounting base
- Heavy-duty drive shaft assembly
The powertrain ensures efficient torque transmission to the high-pressure pump under sustained loads.
High-Pressure Pumping System
- Pump Type: Triplex plunger fracturing pump
- Maximum Working Pressure: Up to 15,000 psi
- Rated Flow Rate: Configurable based on fracturing design
- Fluid End Material: Forged alloy steel with heat treatment
- Plunger Material: Wear-resistant alloy
- Lubrication: Forced lubrication system
- Safety Protection: Pressure relief valve & rupture disc
The pump assembly is designed for high-pressure, high-volume injection of fracturing fluids.
Control & Instrumentation
- Centralized control panel
- Real-time pressure display
- Flow monitoring system
- Engine parameter monitoring
- Alarm system for abnormal pressure
- Emergency shutdown device
Optional digital data acquisition and remote monitoring systems are available for intelligent fleet integration.
Application Scope
The XYLC2500 fracturing truck is applicable for:
- Shale gas fracturing
- Tight oil reservoir stimulation
- Coalbed methane development
- Multi-stage horizontal well fracturing
- Deep well high-pressure stimulation
- Acid fracturing treatments
It can operate independently or as part of a full fracturing fleet system.
Engineering Advantages
High Output Capacity: 2,500 HP rating supports high-pressure, high-displacement pumping requirements.
Reinforced Fluid End: Enhanced durability under cyclic pressure loads.
Field Adaptability: Designed for extreme temperature and harsh oilfield road conditions.
Modular Layout: Key components arranged for simplified maintenance and faster servicing.
Thermal Stability: Optimized cooling system ensures continuous operation during long pumping schedules.
Safety & Protection System
- Engine overspeed protection
- Overpressure shutdown system
- Hydraulic system overload protection
- High-pressure line safety monitoring
- Emergency stop controls
- Fire protection equipment
All safety systems are designed in accordance with oilfield operational practices.
Optional Configurations
- Intelligent fracturing control cabin
- Data recording & transmission system
- Winterization package (-40°C support)
- High-temperature desert configuration
- Sound insulation enclosure
- Automatic lubrication system
- Upgraded corrosion-resistant piping
Frequently Asked Questions
What does "2500" represent?
It indicates the approximate 2,500 horsepower rating of the fracturing power unit.
Is it suitable for multi-stage fracturing?
Yes, it is designed for high-pressure multi-stage stimulation operations.
What type of wells can it service?
Horizontal wells, deep wells, and unconventional formations.
Can it be integrated into a fracturing fleet?
Yes. It can operate in synchronized fleet operations.
Is customization available?
Yes. Power configuration, control systems, and environmental adaptations can be tailored to project requirements.
